Robots/ Cells
Panasonic Robot / Performarc Cell List
PRODUCT DETAILS | LINK | ||
---|---|---|---|
PA055 / PA250M | Small footprint. Great first cell for a customer new to robotics, or just an addition to your fleet. Entry level, so lowest starting price of all Performarcs. All on 1 welded frame; just drop it in with a forklift, add air and power, and you are ready to go. Typical part sizes (in inches): 12 x 53, 18 x 45, 24 x 30 |
Brochure |
|

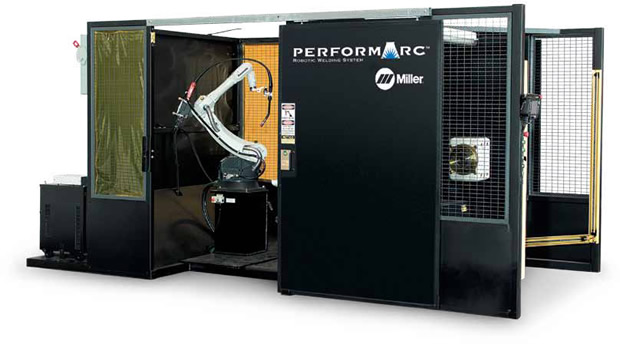

PA102S / PA350S |
Servo Table. Fast, safe and reliable. It takes 2.2 sec for the table to rotate. Less operator fatigue since the operator does not have to walk as far to load parts. The table is an additional 7th axis for the robot, so it's extremely reliable. Typical part sizes (in inches): 12 x 53, 18 x 45, 24 x 30 |
Brochure |
|
PA112S / PA750S |
Similar to the machine above, except able to handle larger parts. Typical part sizes (in inches): 12 x 87, 24 x 76, 36 x 53 |
Brochure |
|
PA122S / PA550H |
Similar to the PA112S / PA750S above. Instead of a flat table, now there are servo head and tailstocks on both sides. Maximum part size (in inches): 34 x 48 |
Brochure |
|
PA202S / PA1100SS |
Servo Headstock and Tailstock on 2 sides. Can accomodate large parts. Operator loads on opposite side of the machine. These machines work well on large parts with long cycle times. 120 in. between faceplates, 44 in. turning diameter |
Brochure |
|
TA1000 |
Panasonic's smallest arm, but still has a decent reach. This arm comes as a TA1000G3, which is a stand alone unit that you can attach either a Panasonic welder or a Miller welder. The other option is a TA1000WG3, which has a Panasonic Tawers welder built into the controller. This adds a full servo feeder and allows for extreme control over your welding application. Reach is 1068mm from base. |
Brochure |
|
TA1400 |
Panasonic's midsize arm. This arm comes as a TA1400G3 which is a stand alone unit that you can attach either a Panasonic welder or a Miller welder. The other option is a TA1400WG3, which has a Panasonic Tawers welder built into the controller. This adds a full servo feeder and allows for extreme control over your welding application. Reach is 1374mm from base. |
Brochure |
|
TA1600 | Panasoni'cs medium arm. This arm comes as a TA1600G3, which is a stand alone unit that you can attach either a Panasonic welder or a Miller welder. The other option is a TA1600WG3, which has Panasonic Tawers welder built into the controller. This adds a full servo feeder and allows for extreme control over your welding application. Reach is 1598mm from base. |
Brochure |
|
TA1800 |
Panasonic's large arm. This arm comes as a TA1800G3, which is a stand alone unit that you can attach either a Panasonic welder or a Miller welder. The other option is a TA1800WG3, which has a Panasonic Tawers welder built into the controller. This adds a full servo feeder and allows for extreme control over your welding application. Reach is 1796mm from base. |
Brochure |
|
TA1900 |
Panasonic's largest arm. This arm comes as a TA1900G3, which is a stand alone unit that you can attach either a Panasonic welder or a Miller welder. The other option is a TA1900WG3, which has a Panasonic Tawers welder built into the controller. This adds a full servo feeder and allows for extreme control over your welding application. Reach is 1895mm from base. |
Brochure |
|
|
|
